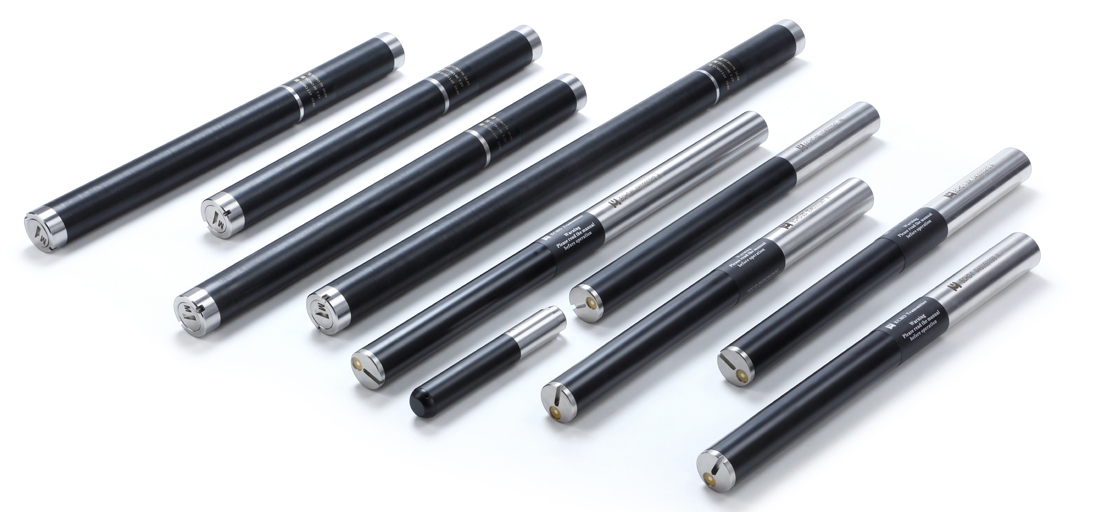

Transmitter

transmitter

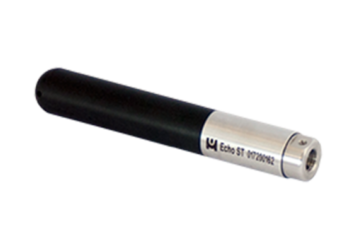

Echo-ST

Echo ST
Type Regular Series
Transmitter Echo ST
Frequency 30kHz
Battery Type 16340 x 1 Rechargeable Lithium Battery
Battery Life 16340 (3.7v): 10 hrs
Depth Range 25 m (82 Ft)
Temperature < 88° Celsius
Roll 24 clock Position
Pitch 0.1% Resolution
V.BAT 3.6v ~ 4.2v
Dimensions 2 cm x 16 cm / 0.79 in x 6.3 in
Water Proof IP67
ECHO ST Steel

ECHO ST Steel
Type Regular Series
Transmitter ECHO ST Steel
Frequency 30kHz
Battery Type 16340 x 1 Rechargeable Lithium Battery
Battery Life 16340 (3.7v): 10 hrs
Depth Range 25 m (82 Ft)
Temperature < 88° Celsius
Roll 24 clock Position
Pitch 0.1% Resolution
V.BAT 3.6v ~ 4.2v
Dimensions 2 cm x 16 cm / 0.79 in x 6.3 in
Water Proof IP67
Echo-60

Echo X MINI
Type Regular Series
Transmitter Echo X Mini
Frequency Dual Frequencies 19/30kHz
Battery Type 18650 x 1 Rechargeable Lithium Battery
Battery Life 18650 (3.7v): 18 hrs
Depth Range 25 m (82 Ft)
Temperature < 121° Celsius
Roll 24 clock Position
Pitch 0.1% Resolution
V.BAT 2.8v ~ 4.2v
Dimensions 2.5 cm x 20 cm / 0.98 in x 7.87 in
Water Proof IP67

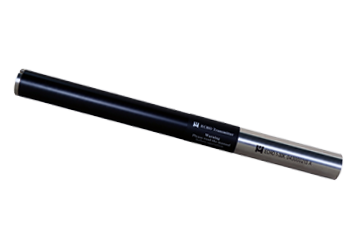

Echo-1-30K

Echo 1-30 K
Type Regular Series
Transmitter Echo 1-30 K
Frequency Single Frequency 30kHz
Battery Type 18650 x 1 Rechargeable Lithium battery
261020 x 1 Lithium Battery (Super cell)
Battery Life 18650 (3.7v) 20 hrs - Normal Mode
261020 (3.7v) 60 hrs - Normal Mode
Depth Range 40 m (131 Ft) - Normal Mode
Temperature <121° Celsius
Roll 24 clock Position
Pitch 0.1% Resolution
V.BAT 2.8v ~ 4.2v
Dimensions 3.2 cm x 38 cm / 1.25 in x 15 in
Water Proof IP67
Echo-1

ECHO 1
Type Regular Series
Transmitter Echo 1
Frequency 3 Frequencies 4/19/30kHz
Battery Type 18650 x 1 Rechargeable Lithium battery
261020 x 1 Lithium Battery (Super cell)
Battery Life 18650 (3.7v) 20 hrs - Normal Mode
261020 (3.7v) 60 hrs - Normal Mode
Depth Range 40 m (131 Ft) - Normal Mode
Temperature <121° Celsius
Roll 24 clock Position
Pitch 0.1% Resolution
V.BAT 2.8v ~ 4.2v
Dimensions 3.2 cm x 38 cm / 1.25 in x 15 in
Water Proof IP67

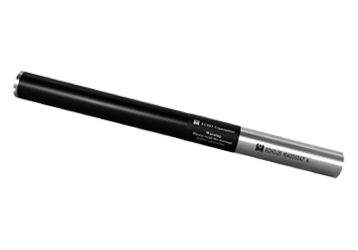

ECHO 2S

ECHO 2S
Type Regular Series
Transmitter Echo 2S
Frequency 3 Frequencies 4/19/30kHz
Battery Type 18650 x 1 Rechargeable Lithium battery
261020 x 1 Lithium Battery (Super cell)
Battery Life 18650 (3.7v)
20 hrs - Normal Mode
5 hrs - High Power Mode
261020 (3.7v)
60 hrs - Normal Mode
15 hrs - High Power Mode
Depth Range 40 m (131 Ft) - Normal Mode
50 m (164 Ft) - High Power Mode
Temperature <121° Celsius
Roll 24 clock Position
Pitch 0.1% Resolution
V.BAT 2.8v ~ 4.2v
Dimensions 3.2 cm x 38 cm / 1.25 in x 15 in
Water Proof IP67

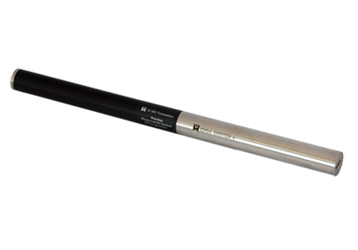

Echo-3

Echo 3

Type Regular Series
Transmitter Echo 3
Frequency 3 Frequencies 4/19/30kHz
Battery Type 18650 x 2 Rechargeable Lithium battery
261020 x 2 Lithium Battery (Super cell)
Battery Life 18650 (3.7v)
50 hrs - Normal Mode
12 hrs - High Power Mode
261020 (3.7v)
160 hrs - Normal Mode
40 hrs - High Power Mode
Depth Range 40 m (131 Ft) - Normal Mode
60 m (196 Ft) - High Power Mode
Temperature <121° Celsius
Roll 24 clock Position
Pitch 0.1% Resolution
V.BAT 5.6v ~ 8.4v
Dimensions 3.2 cm x 48 cm / 1.25 in x 19 in
Water Proof IP67

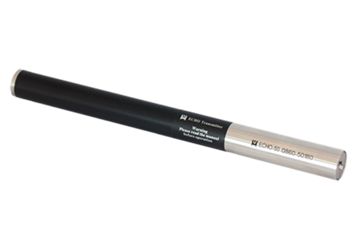

Echo-50

Echo 50
Type Regular Series
Transmitter Echo 50
Frequency 10 Frequencies 4kHz ~ 31kHz
Battery Type 18650 x 1 Rechargeable Lithium Battery
261020 x 1 Lithium Battery (Super Cell)
Battery Life 18650 (3.7v):
20 hrs - Normal Mode
5 hrs - High Power Mode
261020 (3.7v):
60 hrs - Normal Mode
15 hrs - High Power Mode
Depth Range 40 m (131 Ft) - Normal Mode
50 m (164 Ft) - High Power Mode
Temperature < 121° Celsius
Roll 24 clock Position
Pitch 0.1% Resolution
V.BAT 2.8v ~ 4.2v
Dimensions 3.2 cm x 38 cm / 1.25 in x 15 in
Water Proof IP67

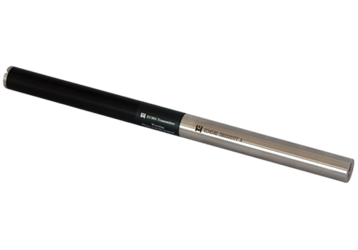

Echo-60

Echo 60
Type Regular Series
Transmitter Echo 60
Frequency 10 Frequencies 4kHz ~ 31kHz
Battery Type 18650 x 2 Rechargeable Lithium Battery
261020 x 2 Lithium Battery (Super Cell)
Battery Life 18650 (3.7v):
50 hrs - Normal Mode
12 hrs - High Power Mode
261020 (3.7v):
160 hrs - Normal Mode
40 hrs - High Power Mode
Depth Range 40 m (131 Ft) - Normal Mode
60 m (196 Ft) - High Power Mode
Temperature < 121° Celsius
Roll 24 clock Position
Pitch 0.1% Resolution
V.BAT 5.6v ~ 8.4v
Dimensions 3.2 cm x 48 cm / 1.25 in x 19 in
Water Proof IP67

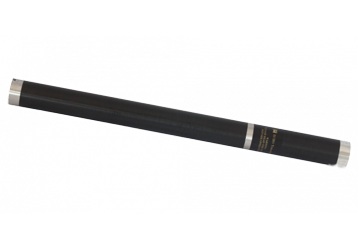

Echo-70

ECHO 70
Type Special Series
Transmitter Echo 70
Frequency 10 Frequencies 4kHz ~ 31kHz
Battery Type 18650 x 3 Rechargeable Lithium Battery
Battery Life 18650 (3.7v):
60 hrs - Normal Mode
15 hrs - High Power Mode
Depth Range 50 m (164 Ft) - Normal Mode
70 m (230 Ft) - High Power Mode
Temperature < 121° Celsius
Roll 24 clock Position
Pitch 0.1% Resolution
V.BAT 8.4v ~ 12.6v
Dimensions 3.6 cm x 40.5 cm / 1.42 in x 15.94 in
Water Proof IP67

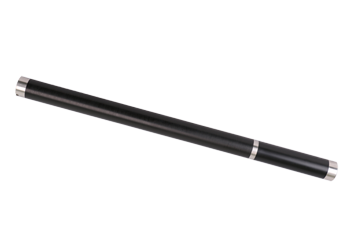

Echo-90

Echo 90
Type Special Series
Transmitter Echo 90
Frequency 10 Frequencies 4kHz ~ 31kHz
Battery Type 18650 B2 x 2 Rechargeable Lithium Battery
Battery Life 18650 B2 (3.7v)
80 hrs - Normal Mode
20 hrs - High Power Mode
Depth Range 70 m (230 Ft) - Normal Mode
90 m (295 Ft) - High Power Mode
Temperature <121° Celsius
Roll 24 clock Position
Pitch 0.1% Resolution
V.BAT 5.6v ~ 8.4v
Dimensions 3.6 cm x 45.7 cm / 1.42 in x 18.00 in
Water Proof IP67

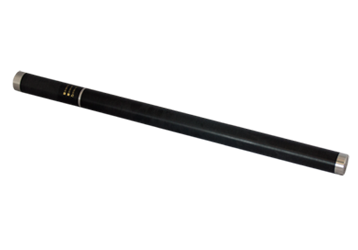

Echo-110

Echo 110

Type Special Series
Transmitter Echo 110
Frequency 10 Frequencies 4kHz ~ 31kHz
Battery Type 18650 B2 x 3 Rechargeable Lithium Battery
Battery Life 18650 B2 (3.7v)
120 hrs - Normal Mode
30 hrs - High Power Mode
Depth Range 90 m (295 Ft) - Normal Mode
110 m (361 Ft) - High Power Mode
Temperature <121° Celsius
Roll 24 clock Position
Pitch 0.1% Resolution
V.BAT 8.4v ~ 12.6v
Dimensions 3.6 cm x 60.8 cm / 1.42 in x 24.00 in
Water Proof IP67
